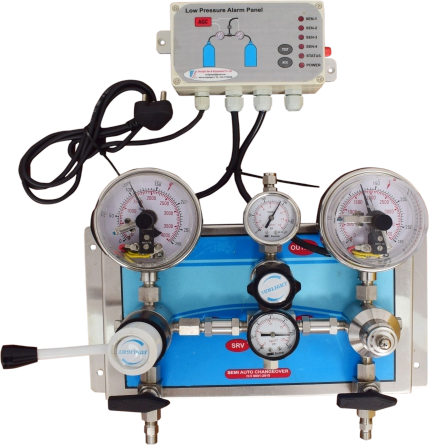

Fully Automatic Gas Manifold System
Panel Controls Gas Delivery From Two Independent Banks Of Cylinders Change Over Between Banks Occure Automatically When One Bank Is Depleted , Ensuring Contnious And Uninterrupted Supply Of Gases To The User Point And Eliminating The Need Of Mannualy Change Of The Cylinders This Also Features An Integrated Plc Circuit That Electronically Monitors And Displays Cylinder Bank Pressure As Well As Delivery Pressure.
When Configured With The Alarm, The Alarm Provies Audible And Visual Warning A Changeover Has Occur.The Led’s On The Remote Alarm Indicate The Status Of The Led Of Left/ Right Banks.
Features
• Panel Mounted
• Fully Automatic Changeover
• Dual-stage pressure reduction minimizes pressure and flow fluctuation
• All components are mounted on a single panel for easy maintenance
• Diaphragm valve connections are orbital welded to minimize contamination and leakage.
• solenoid valve for pressure cut off
• Pressure Transmitter for Pressure flow control.
• Built in with NRV

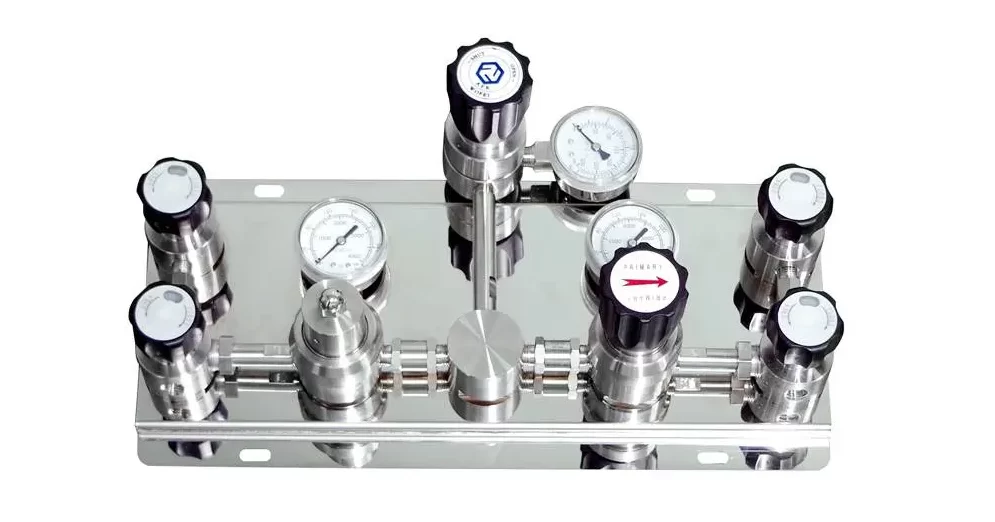

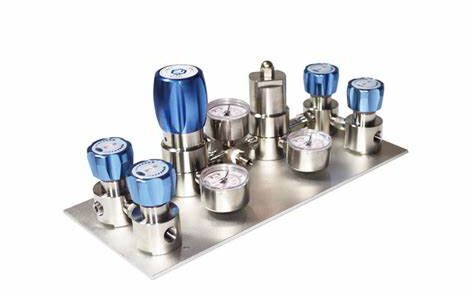

Semi Automatic Gas Manifold System
A Semi-Automatic Changeover System which provides for continuous gas supply without interrupting the system during cylinder changeout. When the primary bank is nearly depleted, a changeover will occur. The reserve bank will then begin to supply gas to the alternate cylinder. The inlet valve on each bank provides the user additional safety while replacing the cylinder(s) on the empty bank before the next changeover occurs.
Features
• Panel Mounted
• Semi-Automatic Changeover
• Dual-stage pressure reduction minimizes pressure and flow fluctuation
• All components are mounted on a single panel for easy maintenance
• Diaphragm valve connections are orbital welded to minimize contamination and leakage.

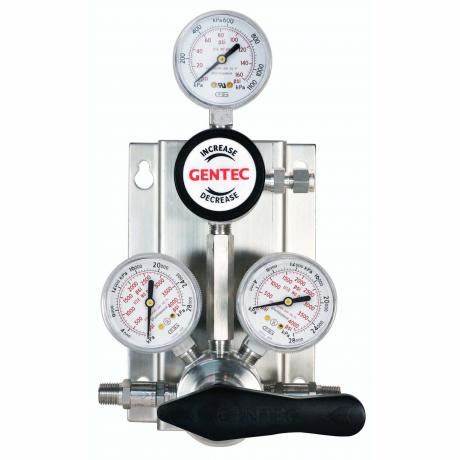

Manual Gas Manifold System
A Two cylinder gas manifold valve is designed in a S.S single block with a combination of an isolation valve – 2nos that can be connected to two cylinders / one with pigtails for use. They have a male or female screwed inlet and outlet ports.
Gas Changeover System For Gas Generator To Cylinder
