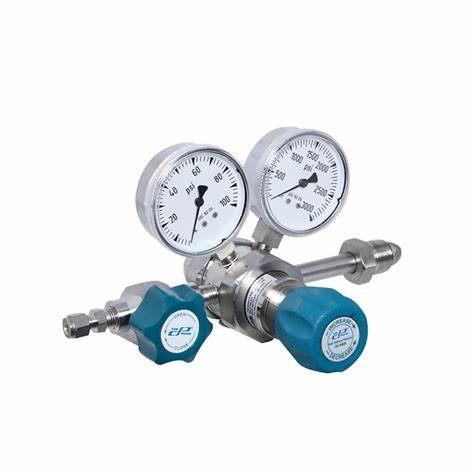

TWO STAGE REGUALTORS
Two-stage regulators are two regulators built into a single regulator body. The first regulator (first stage) is preset at a non-adjustable pressure to reduce the incoming pressure to a lower pressure, referred to as the intermediate pressure. The second regulator (second stage) is adjustable within the desired out let delivery range.
Regulator
Inlet Pressure : 0-280KG/CM2
Outlet Pressure : 0-16KG/CM2
Regulator Type : Pressure Regulator
Material : Brass / ss Steel
Usage/Application : Industrial
Color : BRASS Chromplated / S.S
Flow Capacity : 500 lpm
Max Operating Temperature : PTFE – 66 Deg C, PCTFE – 80 Deg C
All connections : 1/4" NPT (F)
Flow Coefficient : Cv 0.05

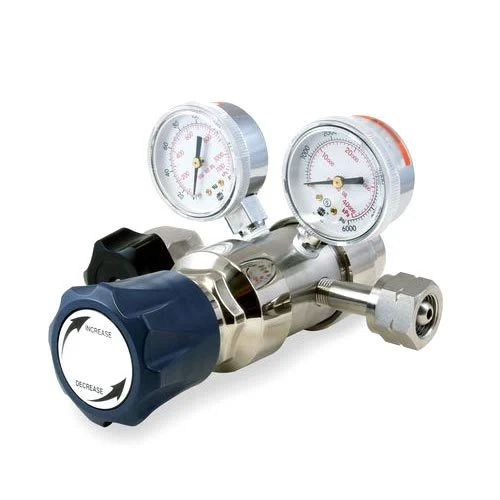

TWO STAGE REGUALTORS
Two-stage regulators are two regulators built into a single regulator body. The first regulator (first stage) is preset at a non-adjustable pressure to reduce the incoming pressure to a lower pressure, referred to as the intermediate pressure. The second regulator (second stage) is adjustable within the desired out let delivery range.
Hydrogen Regulator
Inlet Pressure : 0-280KG/CM2
Outlet Pressure : 0-16KG/CM2
Regulator Type : Pressure Regulator
Material : Brass / ss Steel
Usage/Application : Industrial
Color : BRASS Chromplated / S.S
Flow Capacity : 500 lpm
Max Operating Temperature : PTFE – 66 Deg C, PCTFE – 80 Deg C
All connections : 1/4" NPT (F)
Flow Coefficient : Cv 0.05

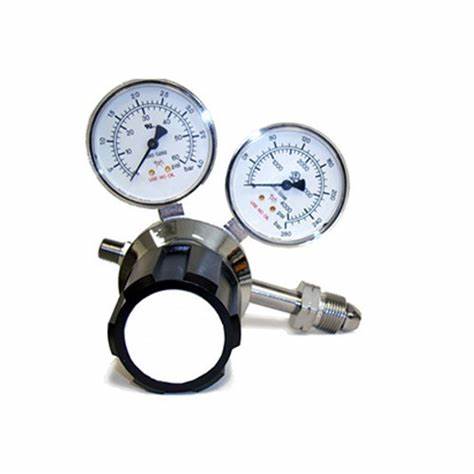

SINGLE STAGE REGULATORS
Single stage regulators are two built in a single regulator body. Single Stage Regulator takes Cylinder Pressure and reduces it down to an adjustable pressure output. The Pressure is controlled and by Piston . This regulators are usually used for High Pressure output Applications.
Regulator
- Stainless steel Piston
- Standard 10µm sintered Bronze filter at inlet of main valve assembly
- 1.6 µm internal surface finish as standard
- Cleaned for Oxygen service
- Bubbles tight shut-off
- All connections: ¼” NPT (F)
- Seat : PTFE/PCTFE
- Max. Operating Temperature: PTFE – 66° C, PCTFE – 80° C
- Inlet end connection: ¼” NPT (F)
- Inlet pressure gauge : 0-280kg/cm2
- Outlet Pressure gauge : 0- 42kg/cm2

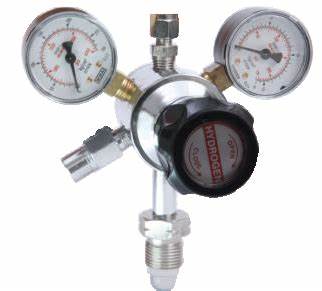

Brass Chromplated Double Stage Gas Regulator
Two-stage regulators are two regulators built into a single regulator body. The first regulator (first stage) is preset at a non-adjustable pressure to reduce the incoming pressure to a lower pressure, referred to as the intermediate pressure. The second regulator (second stage) is adjustable within the desired out let delivery range.

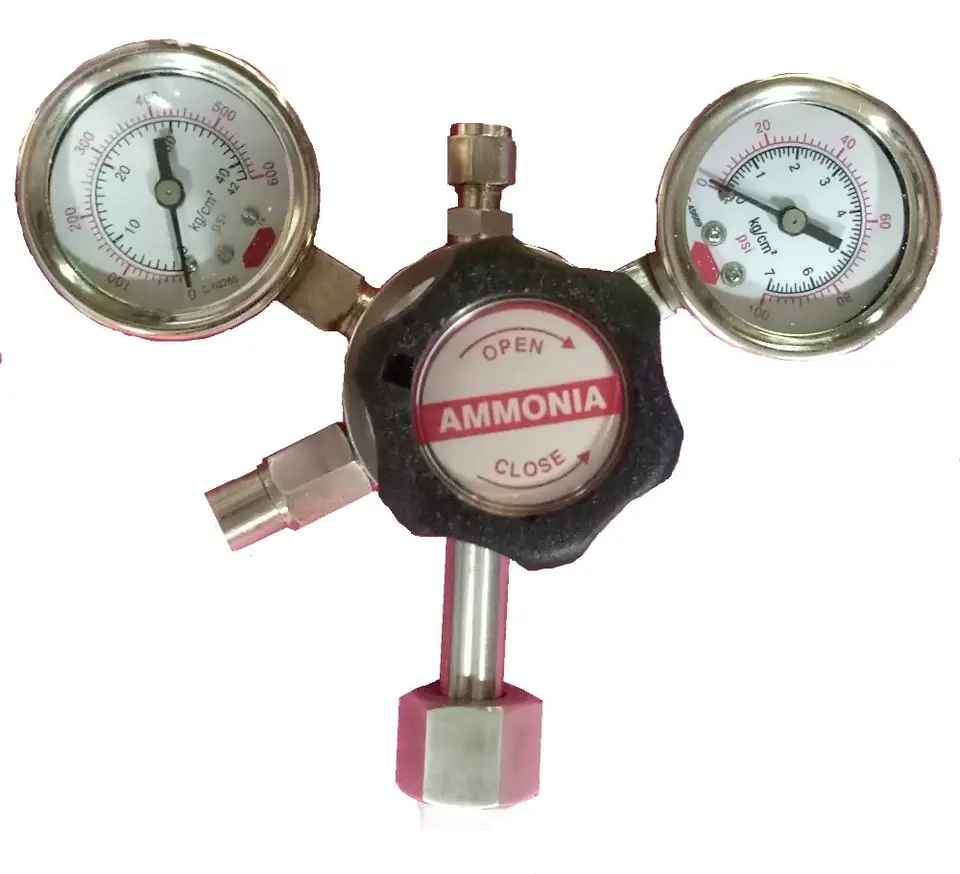

Ammonia Gas Regulator
Corrosive Gas service regulator featuring sensitive control of flow of ammonia gas that can be maintained at low discharge pressure. Specifications: Body and Bonnet: SS 316 Diaphragm : SS 316 Seat : Teflon Maximum Inlet pressure : 40kg/Sqcm. Outlet pressure : 0-3Kg/Sqcm.
Product Name
Some information about it. Some information about it. Some information about it. Some information about it. Some information about it. Some information about it.

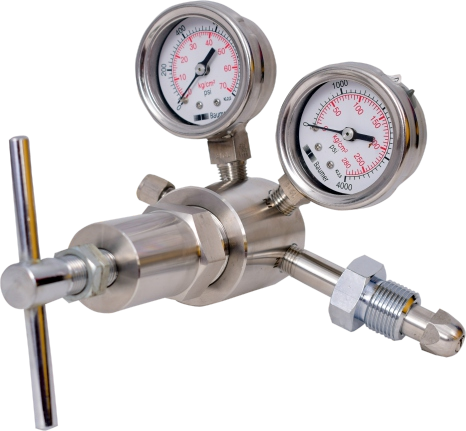

High Pressure Piston Type Cylinder Regulator.
High pressure piston type cylinder regulator ss / brass chromplated body. Inlet pressure gauge 0-280 kg/cm²Outlet pressure gauge 0-100 kg/cm² (as per requirement) & High pressure piston type cylinder regulator SS body. Inlet pressure gauge 0-280 kg/cm²Outlet pressure gauge 0-100 kg/cm² (as per requirement) Athena manufacturers various kinds of Regulators. Athena Regulators have been designed to meet the demand of High Purity Corrosion Resistance Product Specially Suited for low level PPM Moisture Two types of Cylinder Regulators available Brass Chrome Plated body with SS diaphragm and SS body with SS diaphragm. Regulator consists of inlet & outlet pressure gauges. Inlet pressure gauge shows the total pressure of cylinder and outlet pressure gauge shows regulated pressure. High pressure piston type Regulator & Regulators for corrosive gases like Ammonia, Clorine, etc. are also available.
Other Details:
- Inlet pressure range: 0 – 240 kg/cm²
- Outlet pressure range: 0 – 14 kg/cm² in diaphragm type
- Outlet pressure range: 0 – 40, 0 – 70, 0 – 100 kg/cm² in piston type
- High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonium/ Chlorine gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²
- High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonium gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²
- Ammonia Gas Regulators. The offered regulators are widely used for regulating high pressure ammonia gas in pipeline or cylinder for required working pressure. These regulators are highly appreciated by our clients for their durability and easy installation feature

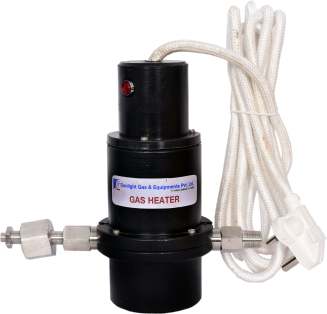

Nitrous Oxide Gas Regulator With Heater
High Purity Corrosion Resistance Product Specially Suited for low level PPM Moisture Two types of Cylinder Regulators available Brass Chrome Plated body with SS diaphragm and SS body with SS diaphragm. Regulator consists of inlet & outlet pressure gauges. Inlet pressure gauge shows the total pressure of cylinder and outlet pressure gauge shows regulated pressure. High pressure piston type Regulator & Regulators for corrosive gases like Ammonia, Clorine, etc. are also available.
Regulator Specifications :
| Type | Single-stage / Double-stage |
| Material of construction | SS 316 / Brass Chromplated |
| Diaphagram | SS 316 with Teflon Seat |
| Pressure Gauges | SS 316 / Brass |
| Inlet Pressure | 0-210 kg/cm², 0-280 kg/cm² |
| Outlet Pressure | 0-14 kg/cm², 0-16 kg/cm²/ as per requirement |
| Flow (LPH) | 300 (max) |
| Gas Services |
Nitrous Oxide with Heater
|
| Outlet Connection | 1/4, 1/8 Swage lock / Hose |
| Inlet Connection | As per requirement of Gas |

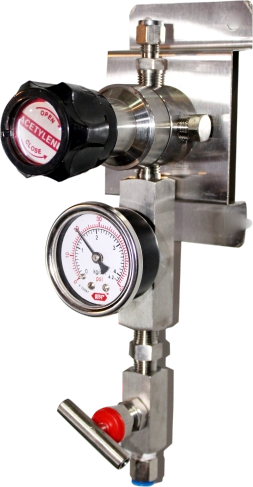

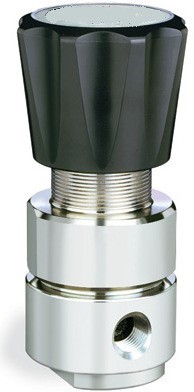

Point Of Use Regulator
A line pressure regulator is a gas pressure regulator intended for installation in a building gas distribution system between the building service regulator 10 PSIG service regulator and gas utilization equipment.
